fibre laser welding machine

Packaging:	Bubble Wrap and Smoked Wooden Case Packing
Productivity:	500Set/Sets per Month
Brand:	zhongcan
Transportation:	Ocean,Land,Air,Express
Place of Origin:	Shandong, China
Supply Ability:	500 Set/Sets per Month
Port:	QINGDAO

Basic Info

Model No.: welding

Product Description

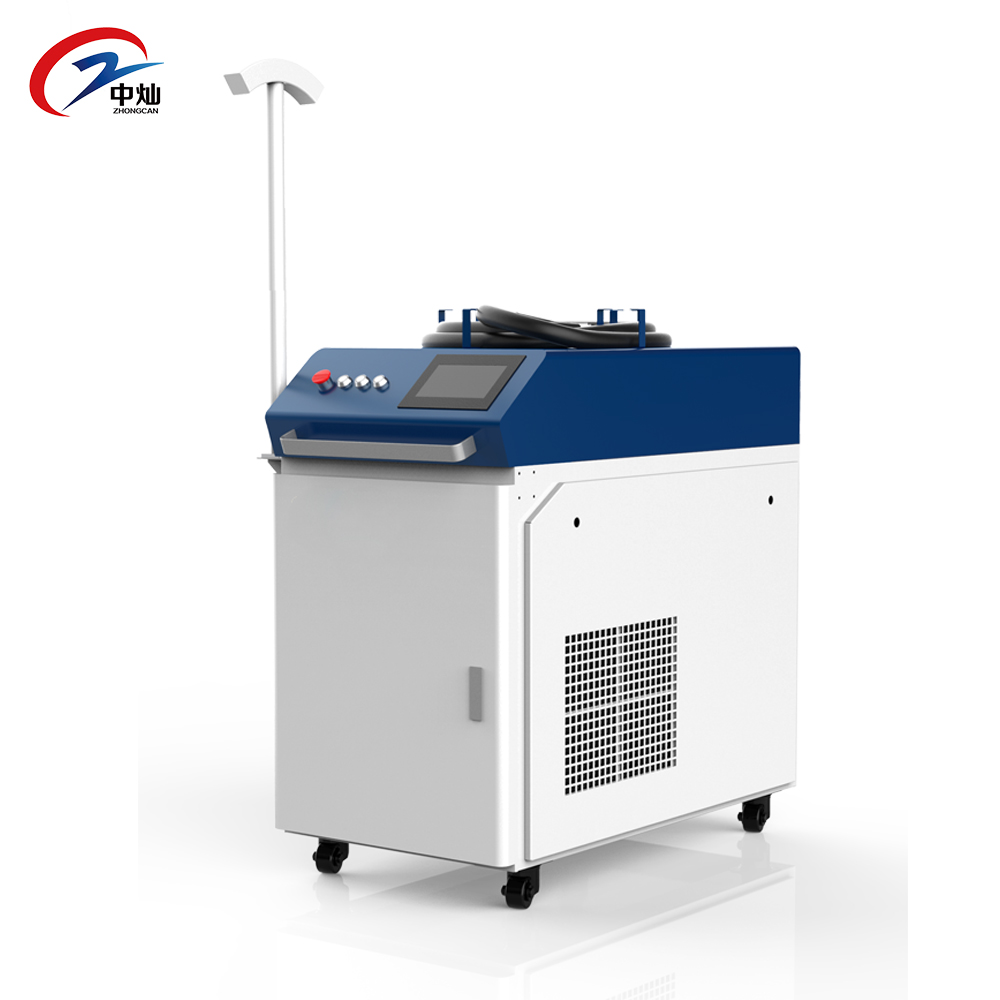

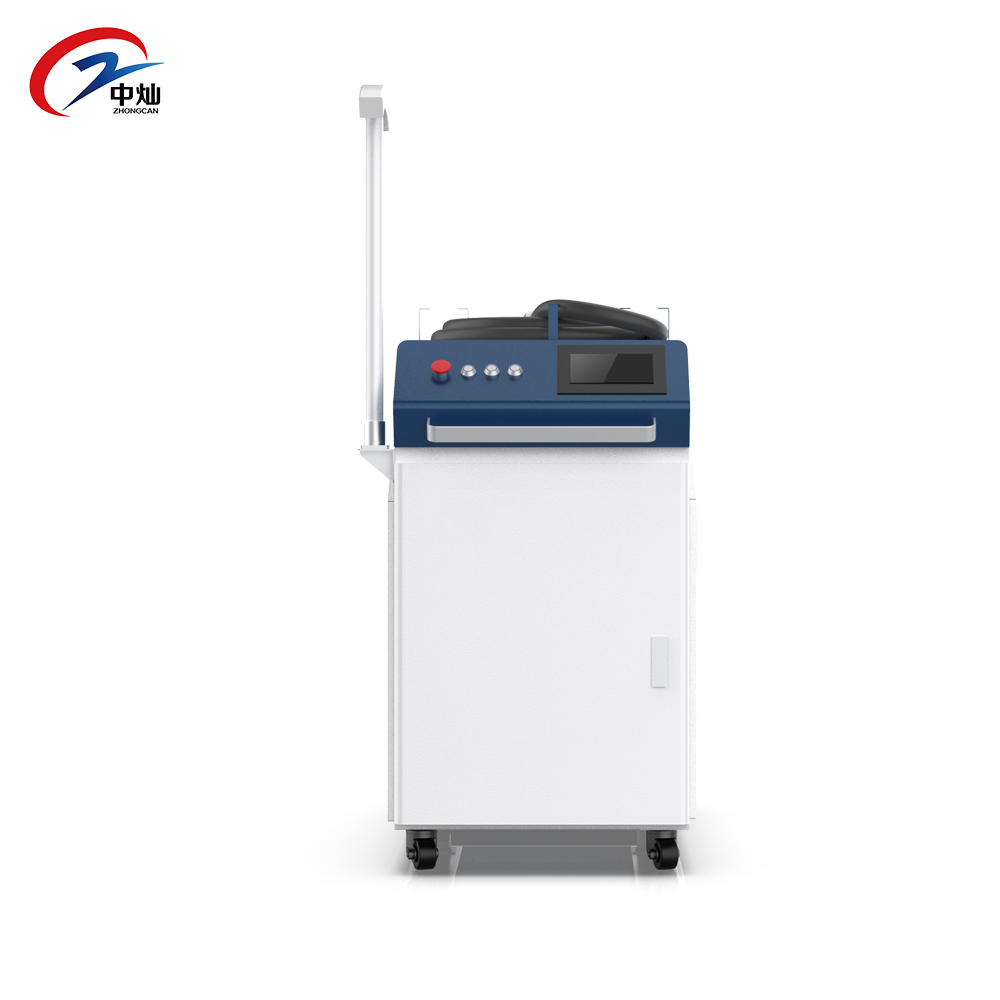

Fiber Laser Welding Machine > fibre laser welding machine

Zhongcan laser hand-held laser welding system capabilities the superb fiber laser beam and excessive welding pace without consumables. it quality fits lengthy-distance, huge component welding with barely any warm temperature affected region. 2-10 times faster than conventional welding, a device can hold as a minimum 2 welders a 12 months. it welds carbon metallic, stainless-steel, brass, copper, iron and more sheet metals and metal tubes.

Extensively used for welding of metallic words, shelves.ovens, stainless-steel door and window guardrails,kitchen cabinets. steel structures. stairs, elevators. distribution packing containers, stainless-steel houses and many others.

Product parameter

Model	ZC-HJ	Laser Source	Raycus
Laser Type	Fiber Laser	Positioning Way	Red Light
Laser Power	1000W/1500W/2000W	Cooling Way	Water Cooling
Welding Depth	0.5-3mm	Laser Head	Handheld
Laser Wavelength	1080nm	Welding Speed Range	0~120mm/s
Frequency Of Pulse	50~20khz	Spot Size	Φ0.2-1.8mm
Fiber Laser Optic Length	10M	Output Power Tunability (%)	10-100%
Humidity Range	﹤70%	Ambient Temperature	10℃~40℃

Product Description

Fiber laser welding machine from zhongcan

Raycus Laser Source

·100,000 hours of lifetime, free maintenance; ·High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency; ·Low energy consumption, only 20%-30% of the traditional CO2 machine.

Fiber laser welding machine

Laser Welding Head

·It is easy to use and adopts double protective layer to protect the lens. If the first lens burns, the customer will find out in time and replace it with a new one, so that the focusing lens will not burn.

Industrial Water Chiller

·Automatically adjust the temperature according to different working environment, no need to change settings parameters; ·Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics; ·Multiple alarm protection;

fiber Laser welding machine from zhongcan

Optional(Auto Wire Feeding)

·Our welding head is a oscillating head jointly developed with the Laser Research Institute of Wuhan Huazhong University of Science and Technology. The weld is beautiful and sturdy, the quality of the welding head is stable, and the customer is easy to operate and adjust.

Sample Show

1.Fast welding speed, 2~10 times faster than traditional welding

The weld seam is smooth and beautiful, the welding workpiece has no deformation, the welding is firm, and no subsequent grinding process is required, which saves time and cost.

2.Easy operating need no training welding seam beautiful smooth and beautiful, don’t need polish, save your time No deformation or welding scar, firm welding of the workpiece.

3.Easy Maintance Laser welding has less consumables and long service life.Safer, more environmentally friendly. Materials Titanium, aluminum, copper, zinc, gold, silver, carbon steel and stainless steel, and also cooperbrass, cooper-titanium, nickel-cooper, cooper-titanium and many other dissimilar metals.

Other prodcut:

CO2 Laser marking machine,fiber laser marking machine,UV laser marking machine,co2 Laser engraving machine,laser cutting machine,laser welding machine,laser cleaning machine

Zhongcan Technology Co.,Ltd

Zhongcan Technology Co.,Ltd was established in 2011,is an integrated modern enterprise with R&D , Producing, Sales and After-Sales Service for various industrial laser equipment involving Laser Marking machine , Laser cutting machine, Laser engraving machine, Laser Welding Machine, CNC Router Machine etc.

We provide customers with affordable, high-quality machine. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key components from Germany and the United States, and the production and manufacturing in China.We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 10-year performance of the machine.

Our Object is Take as much as profit for customers and create endless value for clients .

Zhongcan people warmly welcome every friend visit our factory and look forward to serve you.
