ZT-20-100 Steel Door Frame Roll Forming Machine

  • ZT-20-100 Steel Door Frame Roll Forming Machine
  • ZT-20-100 Steel Door Frame Roll Forming Machine
  • ZT-20-100 Steel Door Frame Roll Forming Machine

ZT-20-100 Steel Door Frame Roll Forming Machine

    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: nake package
    Productivity: 30 sets/month
    Brand: ZHONGTUO
    Place of Origin: China
    Supply Ability: 30 sets/month
    Certificate: CE, ISO9001

Basic Info

Model No.: ZT-20-100

Product Description

Steel Door Frame Roll Forming Machine:

Steel Door Frame Roll Forming Machine is design to roll cold galvanized steel with thickness from 0.4mm to 1.5 mm. steel & metal door frame machine can produce two

types of frame, one is use for shutter door, the shape likes U or similar, another one is used for door panel.

Steel Door Frame Roll Forming Machine consists of decoile,-Feeding and Leveler, roll forming ,cutting part, runout table, PLC control box and hydraulic station.

The production Process:

De-coiler----Feeding and Leveler---Roll Forming---Cutting Part---Runout Table

Process

Composition of Steel Door Frame Roll Forming Machine:

1. De-coiler

  • Loading capacity:1.5T

  • Uncoiling width:300mm (according to the profile drawing)

  • Inner diameter450-550mm

un-coiler

2. Feeding and Leveler

  • Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
leveler

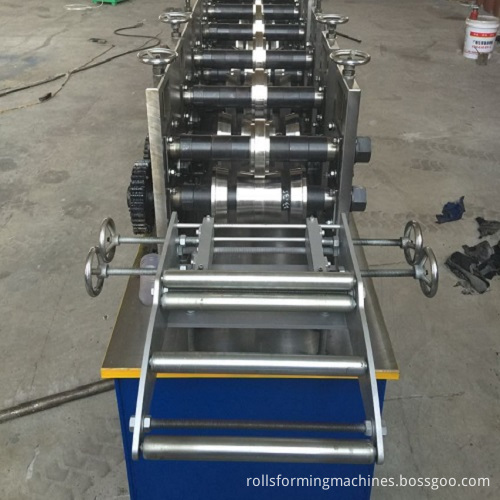

3. Roll Forming

  • Roller material :45# steel, surface hard chromium plating.
  • Shaft material : 45# steel with tempering
  • Outer diameter of shaft :70mm
  • frame : 400H steel
  • Voltage: 380v,50Hz,3 phase As customer`s need
  • Dimensions:15400 * 1800 *1800mm Final size depend on the design
  • Main power: 8.5-15kw Depend on the thickness of material and size of machine
  • Forming steps rollers: 12-20 stations Final rollers depend on the design
  • Speed :8-15m/min

mail roll forming machineroll forming

4.Cutting Part

  • Material of blades : Gcr12MoV quenched

    cutting of steel frame


Sample of shutter door:

door frame (2)

Our service:

1. Installation and training :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service :
a.One year guarantee. b.24 hours technical support by email or calling
